DC Fuse - PV Fuse

PV fuses are applied in PV array combiner box,for protection against overload and short circuit between PV modules and inverter.PV fusess are tested to withstand cycling conditions associated with PV modules system operation and environmental influences.
Quantity:
  • KY-LY1-C
  • KAYAL
  • 8536300000

 5-(1)5-(2)5-(3)

Description

PV fuses are applied in PV array combiner box,for protection against overload and short circuit between PV modules and inverter.PV fusess are tested to withstand cycling conditions associated with PV modules system operation and environmental influences.



Technical Data      PV Fuses
Size 10*38mm
Rated voltage 1000V DC max
Rated Current 2,4,6,8,10,16,20,25,30A
Time constant(L/R) 2 ms
Breaking capacity 20KA
Working temp -25℃-+70℃
Conform IEC60269 standards

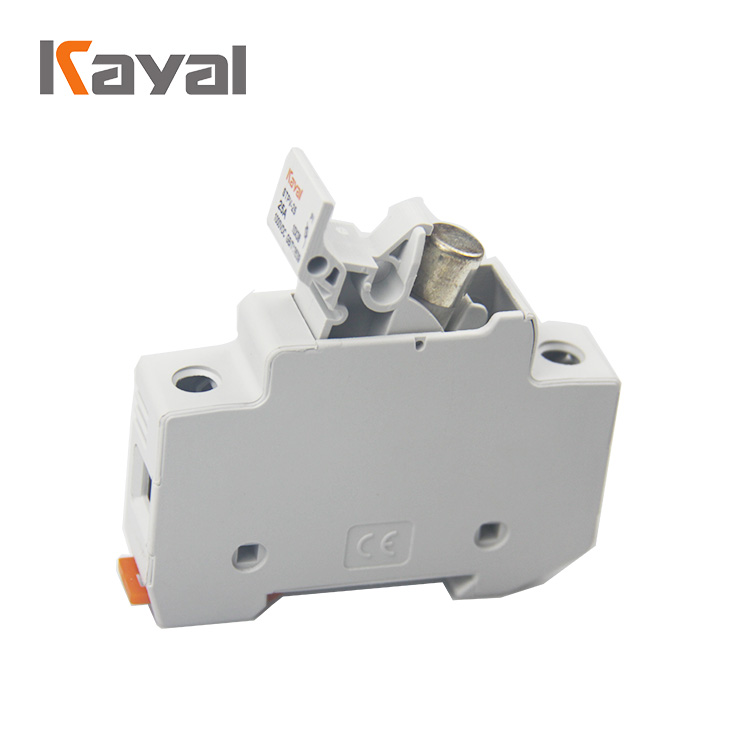

Technical Data PV Fuse Holder
Conform IEC60947-3 standards
Rated voltage 1000V DC max,DC20B
Housing material PA66,UL94-V0
Mounting DIN rail EN50022
Rigid conductor 1 up to 16mm2
Flexible conductor 0.75 to 10mm
