| Quantity: | |
|---|---|
KY-DC-180KW
KAYAL
8504409999
Robust Enclosure Warter proof level IP54.Youcan use the item outdoor anddo not have to worry eve inrainy days.The shell is madeof ABS.light but robust,so itwill not be easily damaged.You can add a lock at thebottom of the station topreven lost. |
High Compatibility Our EV charger is compati-biewith most electric vehicles that comply with SAEJ1772 standard or IEC62196-2 |
Temperature Monitor Intelligent chip inside can monitor the temperature of the station and can automatically cut off the power when the stations overheated. |
emergency button When the machine is in a dangerous state , cut off the power supply through the emergency stop switch , stop the operation of the equipment , and protect the safety of people and equipment |
EV Charging Station Case

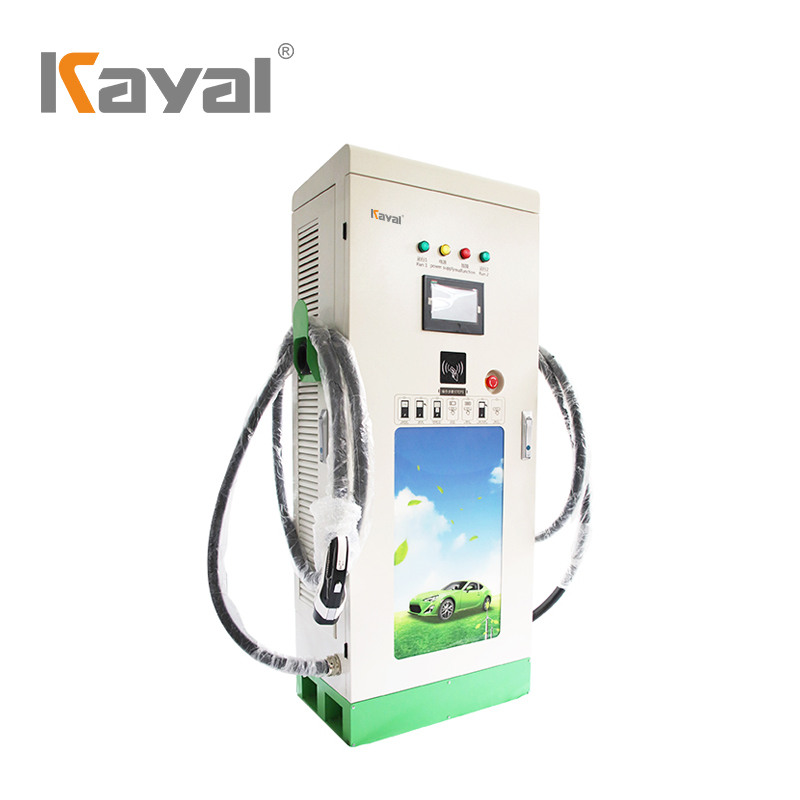

180KW vertical DC charging pile universal
Applicable scene
DC charging piles are suitable for urban special charging piles (buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.), urban public charging stations (private cars, commuting cars, buses), intercity highway charging piles, etc. In the case of DC fast charging, it is particularly suitable for rapid deployment under limited site conditions.
Features
1. Perfect safety protection function, with over-voltage protection, under-voltage protection on the input side, over-voltage protection, over-current protection on the output side, insulation detection protection, over-temperature, short circuit, leakage, lightning protection, anti-reverse battery protection, etc.
2. It has three status indications of power supply, charging, and failure, and is fully compatible with the new version of the national standard. It has functions such as emergency stop, link confirmation detection, charging door opening detection, charging gun lock, and charging gun temperature detection to ensure charging safety in an all-round way.
3. There are various charging operation methods. According to the requirements of "Automatic Full", "Time Mode", "Amount Mode" and "Battery Mode", the electric vehicle is charged according to the requirements of BMS.
4. With the operation authority password management function, it supports non-contact IC card and mobile APP for identity authentication, charging control, payment settlement and other functions.
5. Support wired (RS-232 / 435 / CAN, Ethernet) and wireless (Bluetooth, GPRS, 3G, 4G, etc.) multiple communication methods, can be managed in the charging pile cluster, the system software has local and remote upgrade functions
6. Payment methods: mobile APP payment, credit card payment, WeChat / Alipay, etc.
| model | DC charging pile |
| Rated output power | 180KW |
| Output current range | 0-160A / 250A |
| Input frequency | 45-65Hz |
| Protection class | IP54 |
| Installation method | Vertical |
| Input voltage range | Input AC380V ± 20% |
| Communication Interface | Ethernet |
| Leakage Protection | Leakage current ≤30MA, ≤0.1S during operation |
| Display | 7 inch highlight color touch screen |
| The output voltage | 50-750V |
| Types | Single gun / double gun (optional) |
