MC4 CONNECTOR

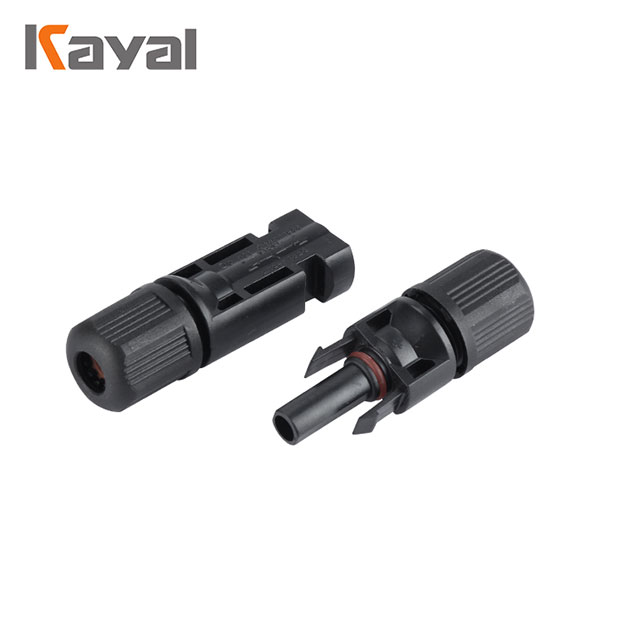

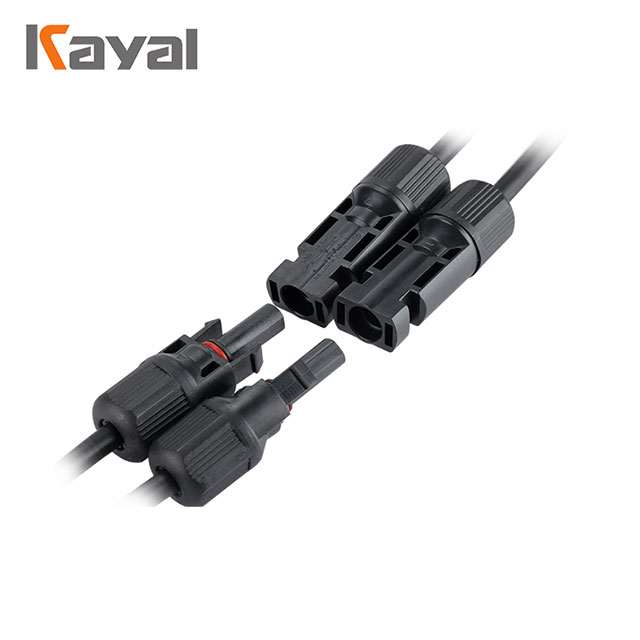

MC4-2 Kit contains 1 male and 1 female MC4 solar panel connector. IP67 cable mc4 solar connector solar power system male and female cable connectors,solar cable connector ip67 mc4 is easy to install and uses “snap in” safety locking tabs to lock two mating connectors, thereby avoiding unintentional disconnection. Also when IP67 cable mc4 solar connector solar power system male and female cable connectors,solar cable connector ip67 mc4 locked, the mating contacts are sealed against ingress of dust and water.

Quantity:
  • MC4
  • KAYAL
  • 8536690000

10-(1)10-(2)10-(3)

MC4 CONNECTOR

· Model Number: SMC4-CMMM-14 ip67 cable connector mc4

· Type: Solar

· Application: solar power ip67 cable connector mc4

· Gender: Male & Female ip67 cable connector mc4

· Rated current: 30A

· Withstanding Voltage: 1000vdc of ip67 cable connector mc4

· Contact Resistance: ≤0.3mΩ

· Protection class: Class II

· Temperature Range: -40 C~+90C

· Protection Degree: IP67 ip67 cable connector mc4

· Unmating Force: 200 Newton ip67 cable connector mc4

· Contact material: Copper,silver plated of ip67 cable connector mc4

IP67 cable mc4 solar connector solar power system male and female cable connectors,solar cable connector ip67 mc4

· Simple on-site processing.

· Acomodates PV cable with different insulation diameters.

· Mating safety provided bykeyed housings.

· Multiple plugging and unplugging cycles .

· High current carrying capacity.

· TUV and UL approved.


Samlex's MC4-2 Kit contains 1 male and 1 female MC4 solar panel connector. IP67 cable mc4 solar connector solar power system male and female cable connectors,solar cable connector ip67 mc4 is easy to install and uses “snap in” safety locking tabs to lock two mating connectors, thereby avoiding unintentional disconnection. Also when IP67 cable mc4 solar connector solar power system male and female cable connectors,solar cable connector ip67 mc4 locked, the mating contacts are sealed against ingress of dust and water.

Specifications are as follows

IP67 cable mc4 solar connector solar power system male and female cable connectors,solar cable connector ip67 mc4

•Connectors supplied with this kit are for use with wire size AWG # 10 or AWG # 12 with outer insulation diameter of 3 – 6 mm

•Contact diameter -4 mm

•Maximum rated current - 30 A

•Maximum system voltage - 1000 V

•Degree of ingress protection when connected and properly locked - IP67

•Temperature range 40°C to +90°C

•TUV Rheinland – type approved, UL listed.

Specifications

Order NO.

Part P/N

Cable special


Connector

Terminal

Conductor size (mm2)

Cable OD(ΦDmm)

SMC4-CMMM-14

SMC4-CMMM-H

SMC4-CM-T14

AWG 14(2.5mm2)

Φ4.5-Φ8.5

SMC4-CMMM-12


SMC4-CM-T12

AWG 12(4.0mm2)


SMC4-CMMM-10


SMC4-CM-T10

AWG 10(6.0mm2)


Order NO.

Part P/N

Cable special


Connector

Terminal

Conductor size (mm2)

Cable OD(ΦDmm)

SMC4-CFPM-14

SMC4-CFPM-H

SMC4-CF-T14

AWG 14(2.5mm2)

Φ4.5-Φ8.5

SMC4-CFPM-12


SMC4-CF-T12

AWG 12(4.0mm2)


SMC4-CFPM-10


SMC4-CF-T10

AWG 10(6.0mm2)


Rated current

30A(2.5-6mm2)

Rated voltage

1000vDC

Test voltage

6000V(50HZ,1min)

Overvoltage type/pollution  degree

CATⅡ/2

Contact resistance of plug connector

1mΩ

Contact material

Copper,Tin-plated

Insulation material

PPO

Degree of protection

IP2×/IP67

Flame class

UL94-VO

Safety class

Suitable cable

OD 4.5-8.5(2.5-6.0mm2)

Insertion force/withdrawal force

≤50N/≥50N

Connecting system

Crimp connection

Temperature range

–40℃~+125℃
