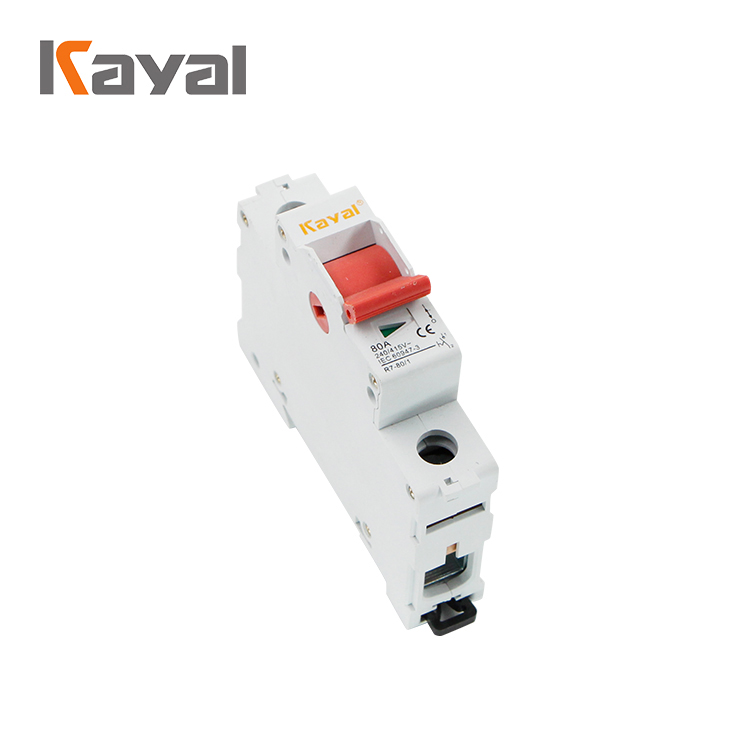

MCB - L7 AC Mini Circuit Breaker

KAYAL L7 Mcb is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 125Amp. The product provides protection against voerload and short circuit to electric circuits and equipments in household and commercial installation. MCB is also used as non-frequent changeover of electric circuits.

Features

1. Protection against both overload and short circuit
2. High short-circuit capacity
3. Contact position indication
4. Applicable to terminal and pin/fork type busbar connection
5. Easy mounting onto 35mm DIN rail
Quantity:
  • L7
  • KAYAL
  • 8536690000

d3974252e7374bddee06c5e96aadb6d (1)

Miniature Circuit Breaker

2

Product Description

1

Characteristic
3

Premium choice

Committed to how to provide safe, convenient and reliable terminal distribution protection products, miniature circuit breakers are selected for you.


5

6 performance

6 protections major performance protections make your productssafer, easier and more reliable

4

Detail

Open the details to see thequality.The fine and beautiful details are the guarantee of a product and the intention of the user.


6

Scope of application

Usually installed in the distribution box on the floor,computercenter, telecommunications room,elevator control room, cable TV room, building automatic controlroom, fire center. industrial automatic control room, hospital operatingroom, monitoring room and distribution box equipped with electronic medical equipment Waitinginside.


Product parameter

GENERAL

KAYAL L7 Mcb is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 125Amp. The product provides protection against voerload and short circuit to electric circuits and equipments in household and commercial installation. MCB is also used as non-frequent changeover of electric circuits.

Features

1. Protection against both overload and short circuit

2. High short-circuit capacity

3. Contact position indication

4. Applicable to terminal and pin/fork type busbar connection

5. Easy mounting onto 35mm DIN rail

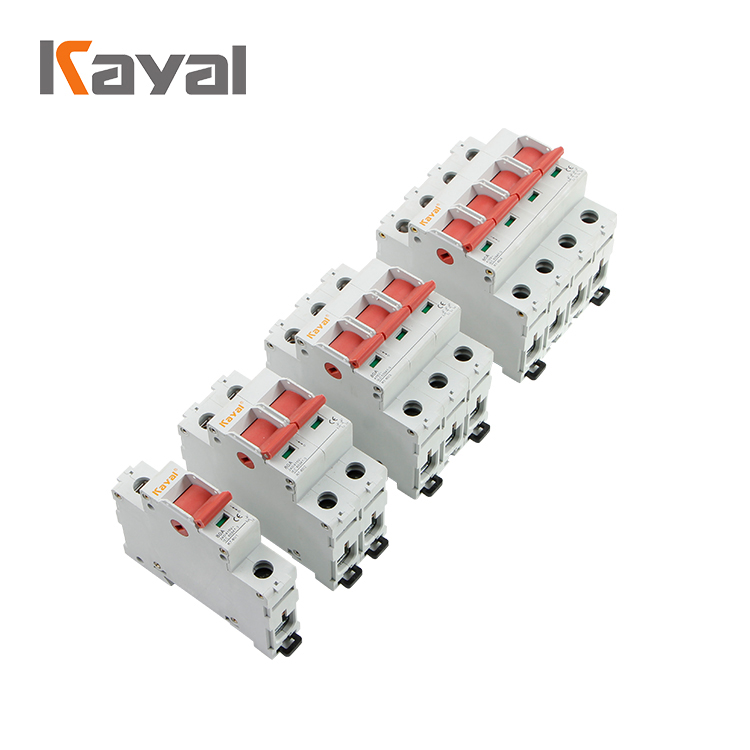

Pole No: 1,2,3,4
Rated voltage: AC 230/400V
Rated current(A): 1,2,3,4,6,10,13,16,20,25,32,40,50,63
Tripping curve: B,C,D
Rated short-circuit capacity(lcn): 6KA,10KA
Rated frequency: 50/60Hz
Energy limiting class: 3
Rated impulse withstand voltage: 6.2kV
Electro-mechanical endurance: ≥ 6000
Contact position indication
Connection terminal: Screw terminal / Pillar terminal with calmp
Connection capacity: Rigid conductor up to 25mm²
Fastening torque: 2.0Nm
Installation: On symmetrical DIN rail 35mm / Panel mounting
